Aluminium Armoured

ALUMINIUM ARMOURED

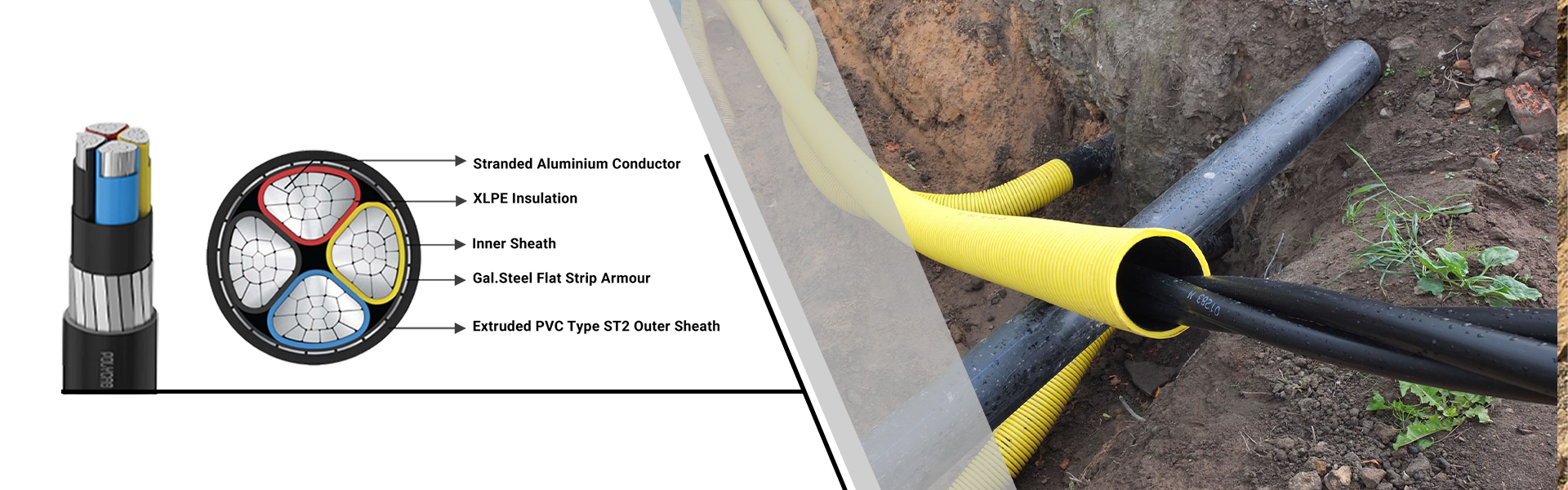

POLYCAB A2XFY MC-3, Stranded compacted aluminium conductor, XLPE insulated, PVC inner sheathed, Galvanised Steel Flat strip armour and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth

VOLTAGE RATING: 650/1100 V
OPERATION TEMPERATURE:
  • 90˚C
  • Short circuit temperature 250˚C
CORE IDENTIFICATION: Red, Yellow and Blue
STANDARD AND REFERENCES:
  • IS 8130:2013
  • IS 5831:1984
  • IS 3975:1979
  • IS 7098-1:1988
BENDING RADIUS: Fixed installation | 12 x Overall diameter
COMPLIANCE:
  • Conductor resistance - IS 8130:2013
  • Insulation resistance - IS 7098-1:1988
  • Flammability test - IEC 60332-1:2015

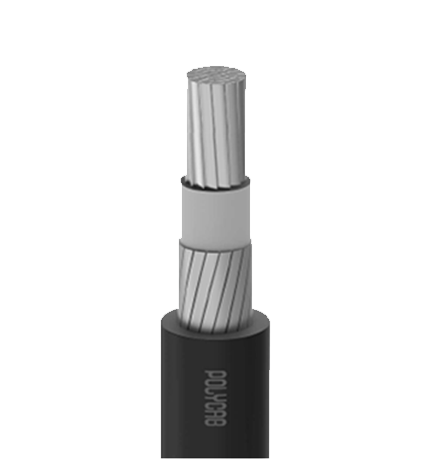

Aluminium Conductor POLYCAB A2XY SC, stranded compacted aluminium conductor, XLPE insulated, and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth VOLTAGE RATING: 650/1100 V OPERATION TEMPERATURE: 90˚C Short circuit temperature 250˚C CORE IDENTIFICATION: Red/Black/Yellow/Blue/Natural STANDARD AND REFERENCES: IS 8130:2013 IS 5831:1984 IS 7098-1:1988 BENDING RADIUS: Fixed installation | 12 x Overall diameter
